Living with Art
Lighting your private collection — museum-grade methods scaled for the home, so each piece is staged brilliantly and kept for generations.
The balance of preservation and presentation
Lighting art is a discipline of technical precision and aesthetic sensitivity. When bringing world-class artwork into a residential setting, the primary concern is always conservation. High-quality LED tools can be effectively free of ultraviolet and infrared components — but that alone does not remove risk. Illuminance, duration, and spectrum still matter; careful aiming and dimming help minimise the photochemical and thermodynamic processes that cause materials and colours to deteriorate.
True-to-life colour: specify fixtures with a high Colour Rendering Index (CRI > 90) so hues stay authentic — what you hung is what you see. Pair conservation-minded LEDs with high CRI, then control the dose of light so the collection can be staged brilliantly and kept for generations.
Methods matched to the work
Start here before you pick a product. The method decides the optic; the fixture follows. One ERCO range often covers more than one method — so this table names techniques, not a one-product lock.
| Method | What it does |
|---|---|
| Contour / framing | Crops the beam to the exact rectangle of the work — the painting appears to glow from within |
| Spotlighting / accenting | Narrow beams create high contrast, draw the eye, and insulate the piece from the rest of the room |
| Wallwashing | Uniform, even vertical light across the whole surface — one canvas or many smaller works on one wall |
| Wide-area lighting | Broad, even light across a larger field so several works (or a whole wall zone) share one luminous plane without hard pools |
Principles, tools, and infrastructure
Master the “Museum Angle”
Established lighting principles such as the museum angle are useful even in the age of LED technology — not only in galleries, but in a private home where paintings hang at living-room scale.
The principle: light with an angle of incidence of 30° from the vertical. For paintings it delivers even brightness, models brushwork without exaggeration, and reduces reflected glare — especially on glass. For sculptures it emphasises three-dimensional form with controlled light and shadow.
Go steeper than 30° and shadows and frame edges harden. Go shallower and viewers cast shadows on the work, while glass glare and weak modelling take over. Placement tip: aim so the beam meets the work at ~30° — often slightly in front of / beside the wall plane rather than hard against the ceiling above the frame.
Specify the tool for the method
Once you know whether the work needs framing, accenting, wallwashing, or wide-area light, pick optics that deliver that method — with low spill-light and museum-grade precision where it matters. For home projects we lead with ranges WA specifies often: Parscan, Axis, Optec, Pollux, and Light Board.
Below is one representative product per method — not an exclusive lock (the same family can serve more than one technique).
Contour framing attachments crop the beam to the painting — proprietary lens control, minimal spill-light. Gallery standard at residential scale.
Recessed / trimless spotlight — discreet ceiling, precise accent for sculpture, focal pieces, or showcase-scale works.
Track spotlight with interchangeable lenses — flexible accent when the hang moves; pairs with museum-angle aiming.

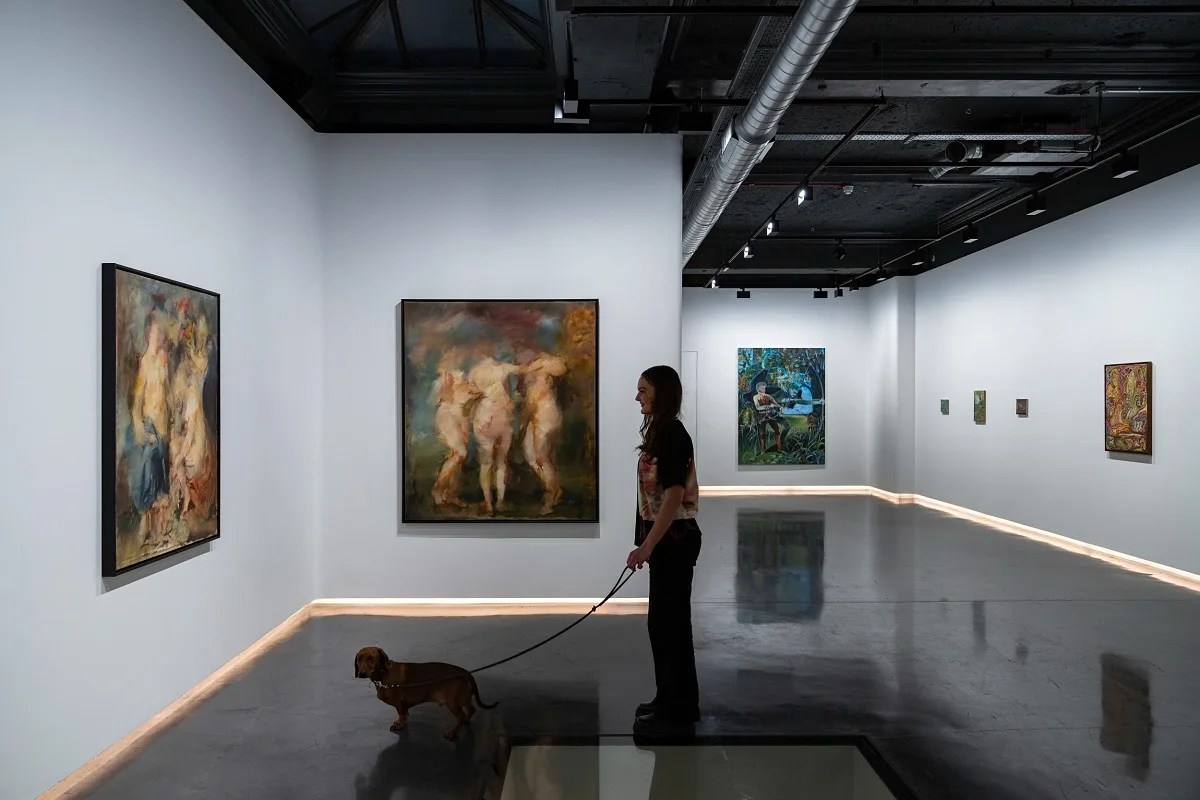

Track wallwasher for even vertical light on large canvases or gallery walls — keeps ceilings calm.
Project illustration — Daisy Home, Jeju
Residents live among a rotating art collection. Opton spotlights wallwash the vertical planes, while a Compar layer holds general illumination for daily living — a useful real-world reference alongside the WA specify list above.
Daisy Home, Jeju. Lighting: ERCO (Opton on track + Compar for ambient). Photo: Jackie Chan.
Use flexible track for changing collections

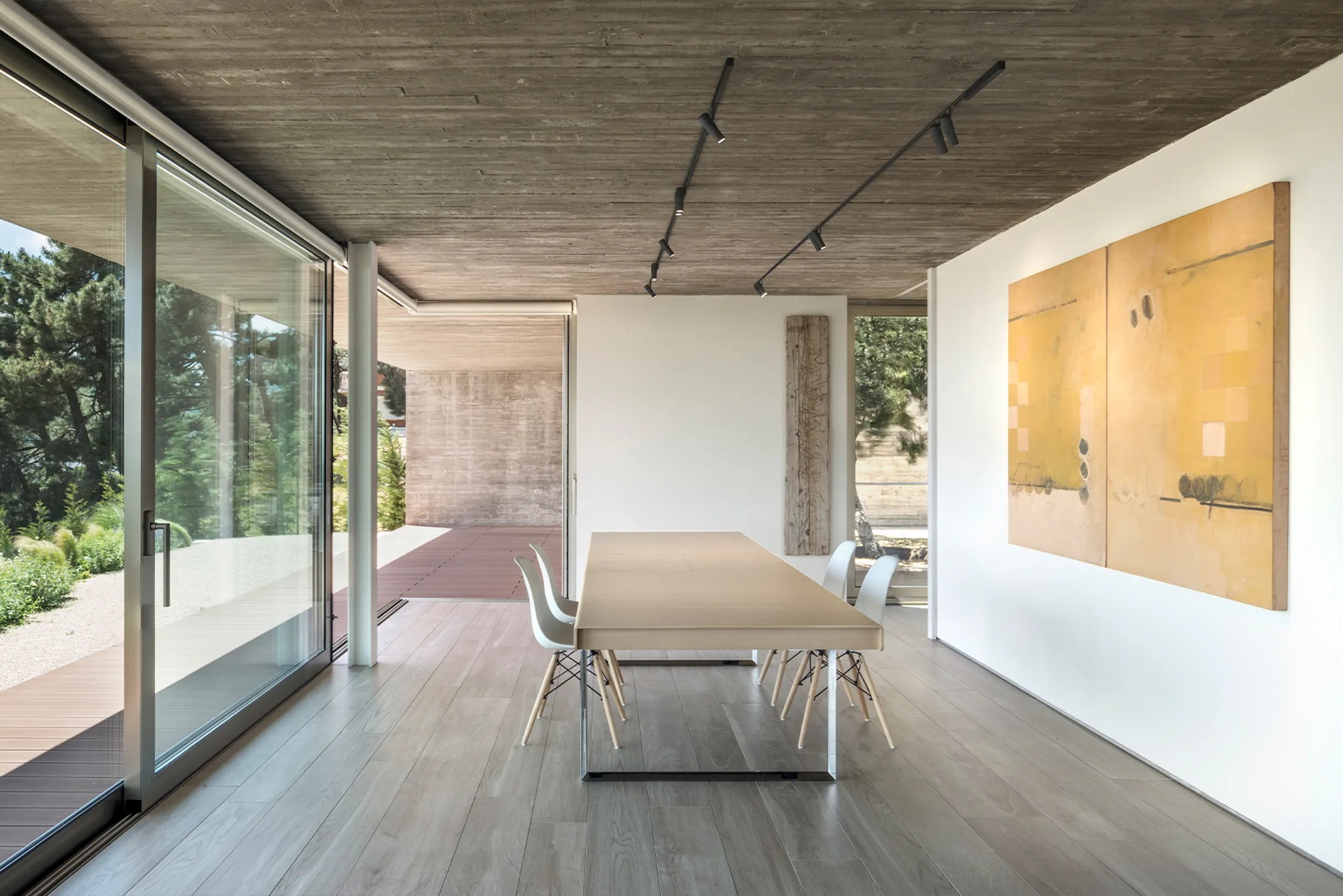

If you rotate displays or move pieces, you need infrastructure that moves with you. Track-mounted spots can be repositioned and aligned without tools. Magnetic systems take flexibility further when you want modules to come on and off by hand.
Track-ready museum optics — frame, accent, or wallwash as the collection changes.
Miniaturised 24V profile — surface or recessed; pairs with compact spots (Find Me, Atom).
Magnetic system for ambient stripes + high-contrast accent modules — blend room light with art light.

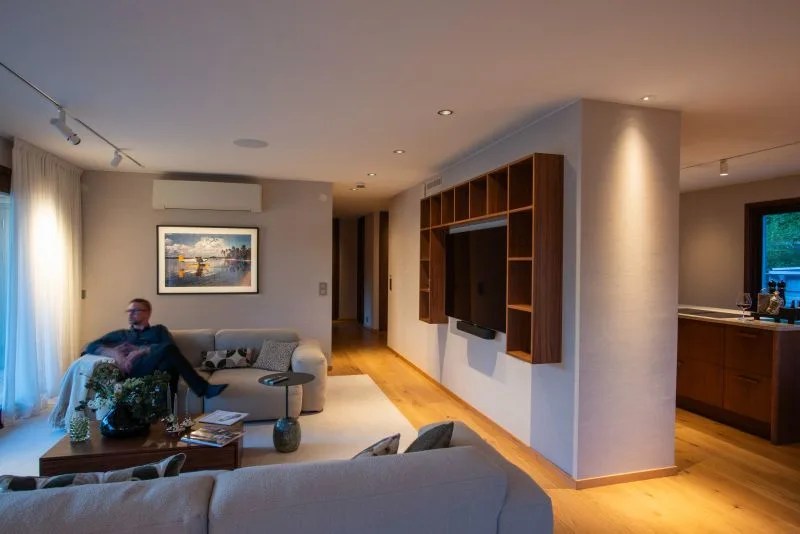

Balance focal glow with ambient luminescence
While accenting the art is crucial, the room still needs a comfortable ambient layer for daily living. Keep uniform, glare-free general light on its own foundation layer — a pristine canvas for layering light — so art accents (Parscan / Axis / Optec / Light Board) can stay focused on the work.
Pair that architectural ambient with warmer decorative layers where the interior asks for it.
Adjustable, low-glare, gallery-grade optics scaled for residential ceilings — the ambient foundation so art accents stay in control.
Trimless recessed downlight with dual-focus silicone lens — adjustable beams, glare-free precision, disappears into the ceiling.
Precision control for conservation — and for the palette
Acceptable illuminance levels can be set by dimming — down to 1% where the system allows — so light-sensitive works are never over-exposed, while high-contrast scenes still read clearly.

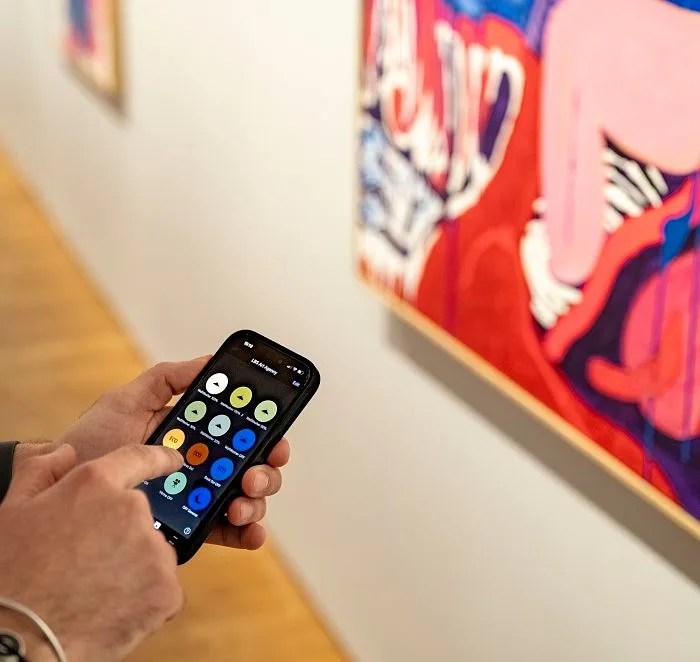

Tunable white lets you match the light’s colour temperature to the artwork’s palette (warm to neutral) from a smartphone. With Casambi Bluetooth or FLOS Control, dim levels, tunable white, and curated scenes sit in one interface. As a Casambi 4C certified partner, William Artists handles commissioning so the system you specify operates as designed.
Before you specify — a short checklist
- Method first: framing for canvases · accent for sculpture · wallwash for large formats / gallery walls · wide-area for larger zones
- Museum angle (~30°) from vertical — avoid steep harshness and shallow glare
- Conservation practice — prefer low UV / IR LEDs, then control illuminance and duration
- CRI > 90 for true-to-life colour
- Track or magnetic infrastructure if the hang will change
- Ambient layer separate from art accent (e.g. Quintessence Round / Light Shadow)
- Dim + tunable white (Casambi) to protect works and tune to each piece’s palette
Match the method to the art, the angle to the viewer, and the control to conservation.
Questions collectors ask
How do you minimize damage to art through appropriate illumination?
Prefer LEDs with negligible UV and IR, then control illuminance and duration — dim to levels appropriate for light-sensitive works. High CRI keeps colour true while conservation practice protects the object.
How should lighting differ for paintings, sculptures, and gallery walls?
Use contour/framing for rectangular canvases, narrow spotlighting for sculptures and focal pieces, wallwashing for large formats or walls of multiple works, and wide-area lighting when a larger zone should share one even field. Many homes need a mix on one flexible track.
What is the “museum angle” in art lighting?
Light hits the artwork at about 30° from the vertical. At this angle you get even brightness and good modelling of brushwork or relief — for sculptures, clear three-dimensionality — without the harsh shadows of a steeper beam or the viewer shadows and glass glare of a shallower one.
Why does CRI matter for art at home?
A high Colour Rendering Index (CRI > 90) keeps hues authentic so the palette you collected is the palette you see under artificial light.
Why use a track lighting system for a home gallery?
Track offers the ideal infrastructure for changing lighting requirements. If you frequently rotate your collection, track-mounted spotlights can be repositioned and aligned without tools or rewiring. Magnetic systems (e.g. FLOS Zero Track Pro / Running Magnet) add tool-free module changes.
How does dimming and tunable white protect my collection?
Dimming sets safe illuminance levels (down to 1% on capable systems). Tunable white adjusts colour temperature to suit each work’s palette. Casambi (or FLOS Control) puts both on a phone — William Artists commissions as a Casambi 4C partner.
Specifying lighting for a private collection?
Tell us about the space and the artwork — canvas, sculpture, gallery wall, or a mix. We will supply and support a layered specification, drawing on the brands in this guide and our 50 years of experience to bring your brief to life.
